Frameless Glass Railings — Transparent Safety for Stairs & Balconies
Modernize your staircase, balcony, or pool area with frameless glass balustrades. Enjoy uninterrupted views backed by uncompromising engineering.
Technical Specifications
| Attribute | Value |
|---|---|
| Glass Specifications | 12mm Tempered or 13.52mm Laminated Tempered Glass |
| Mounting Hardware | Grade 304/316 Stainless Steel Standoffs or Spigots |
| Base Channel | Heavy-duty extruded aluminum U-channel (Base Shoe) |
| Handrails (Optional) | Slotted stainless steel or solid wood top rails |
| Anchoring | Hilti chemical anchors or heavy expansion bolts into concrete |
The Engineering Behind the Aesthetics
Precision Anchoring
We core-drill directly into structural concrete and utilize high-strength chemical anchors to secure the stainless steel spigots or aluminum base shoes, ensuring the railing meets strict load-deflection standards.
Load Rating Compliance
For residential balconies, we design for 0.74 kN/m. For commercial installations, we step up to 1.5 kN/m to 3.0 kN/m. Our base plates anchor directly into the concrete slab—never into screed or tile.
Laminated Retention Options
For elevated applications where post-failure retention is required, we use laminated glass (e.g., two 6mm tempered plies bonded by a PVB interlayer) which holds fragments in place if broken.
Mounting Configurations

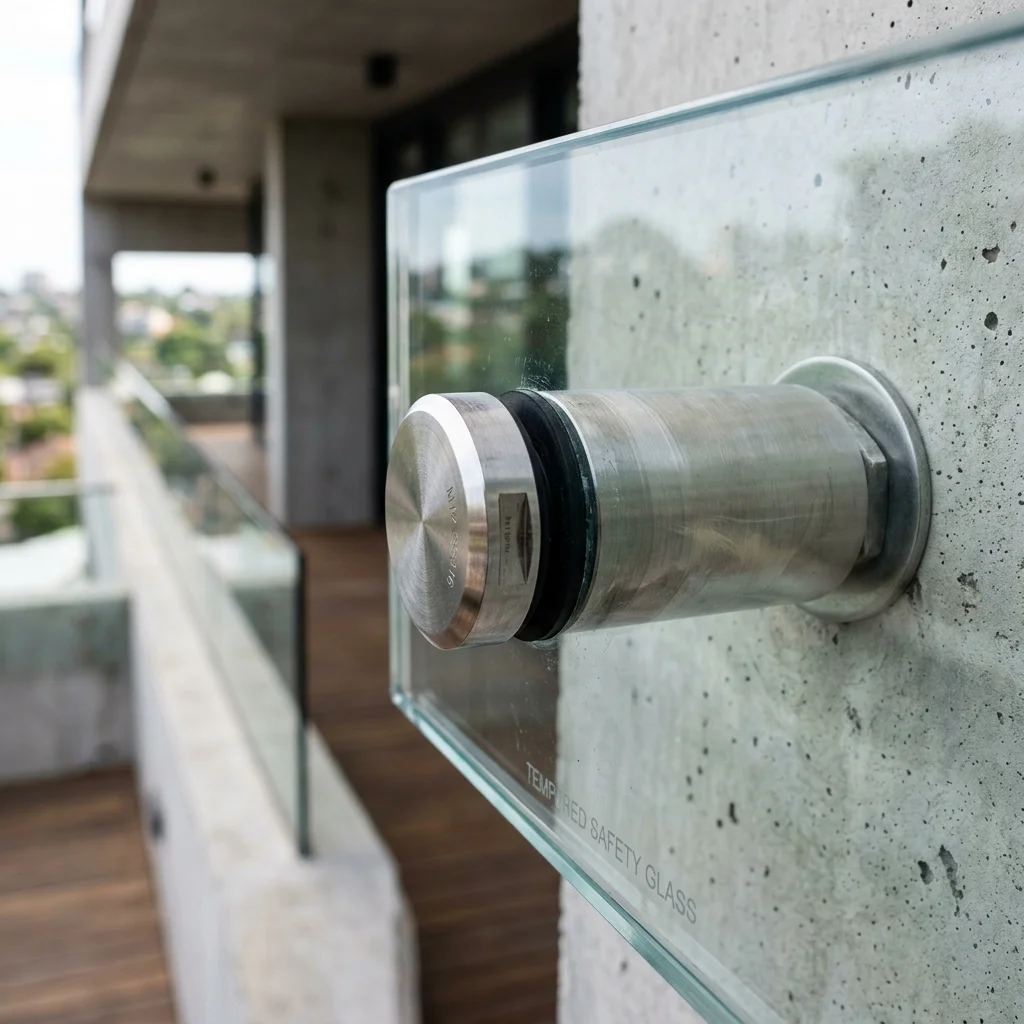

Choose from spigot fittings (post-mount), continuous base channels (top-mount), or recessed standoff fittings (side-fix) depending on your architectural intent and substrate conditions.
Our Local Portfolio
Recent glass railing installations across Metro Manila.

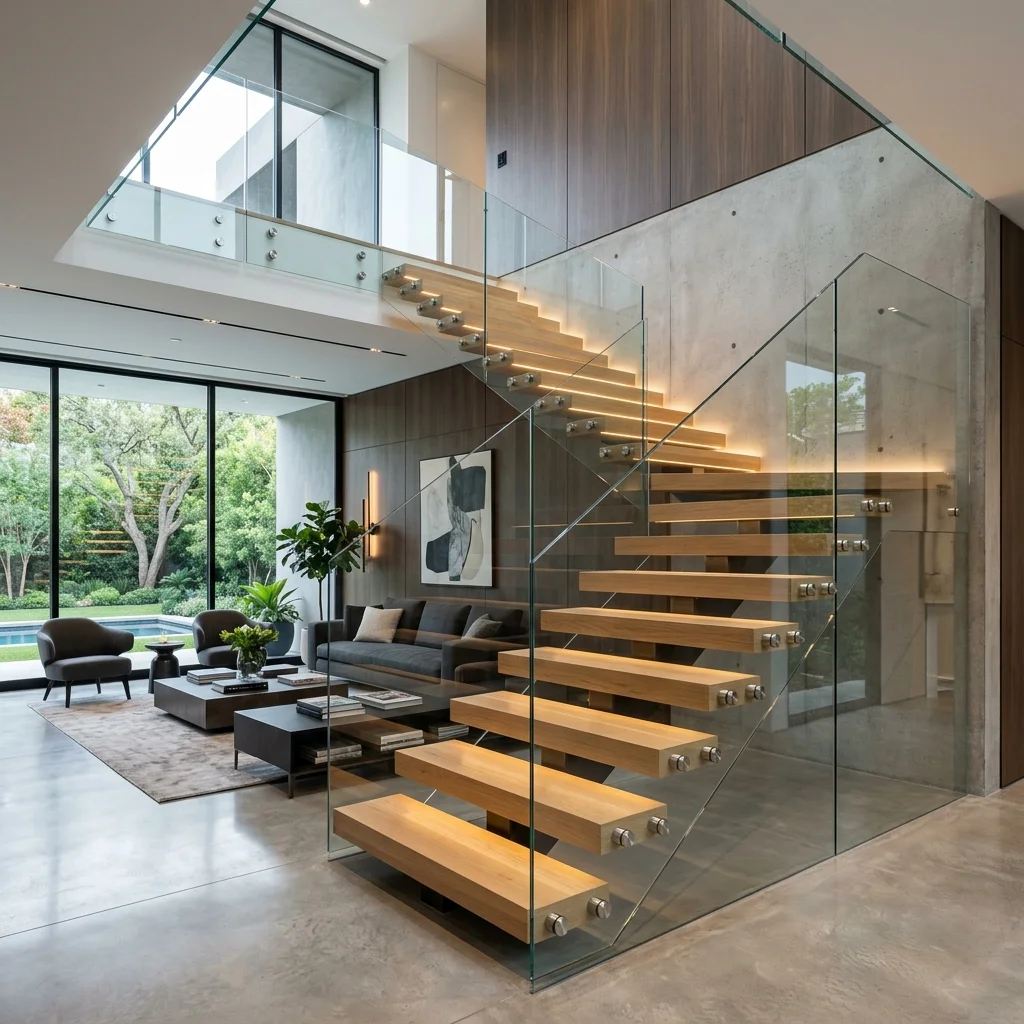

Invisible Boundaries. Structural Strength.
Code-compliant glass railings engineered for Philippine balconies, staircases, and pool decks.
12mm Fully Tempered Glass
Structural glass railings use minimum 12mm tempered glass panels, rated for full body-weight lateral impact loads per international balustrade codes.
Unobstructed Views
Unlike steel or aluminum balusters, glass panels give completely uninterrupted sightlines, perfect for balconies and pool decks with a view.
Stainless Spigots & Channels
Marine-grade 316 stainless steel spigots (point-fixed) or a continuous base channel system, both engineered to hold glass rigidly without visible frame elements.
Corrosion-Proof for Coastal
316 stainless hardware chosen specifically for resistance to salt air and chlorine, ideal for beachfront, poolside, and high-humidity balcony environments.
Zero Maintenance Surface
Tempered glass with hydrophobic nano-coating stays clean with minimal effort. No paint to chip, no rails to sand, no corrosion to treat.
Code-Compliant Engineering
We size all glass railings to PNBC and ASME A17.1 requirements with certified calculations available for building permit submissions.
Frequently Asked Questions
Common questions about glass railing installation in Philippine homes and condominiums.
Is glass railing safe for a balcony in the Philippines?
Yes, when engineered correctly. We use a minimum of 12mm fully tempered glass, engineered spigot or channel fixings, and marine-grade 316 stainless hardware. The system is designed to meet international handrail load requirements. Properly installed glass railings are as strong as or stronger than steel baluster systems.
What is the difference between spigot and channel-mounted railings?
Spigot-mounted railings use individual stainless posts that grip the glass at set intervals, the glass appears to float. Channel-mounted railings use a continuous base channel into which the glass slides, giving a cleaner lower-profile look. Both are structurally equivalent and the choice is aesthetic.
Can glass railings be installed on an existing concrete balcony?
Yes. Our spigot fixings are set into the concrete slab using epoxy anchors rated for the full lateral load of the railing. The installation requires drilling into the slab which we do with precision to avoid hitting reinforcement bars.
How do glass railings handle typhoon winds?
Glass panels in a railing system are in a fixed non-openable position. 12mm tempered glass panels in a rigid stainless spigot or channel system have extremely high resistance to wind pressure loads. For high-exposure locations, we offer laminated glass options that remain in place even if cracked.
Get Your Glass Railing Quote
Frameless glass railings for balconies, staircases, and pool decks. Custom engineered, quote within 24 hours.
